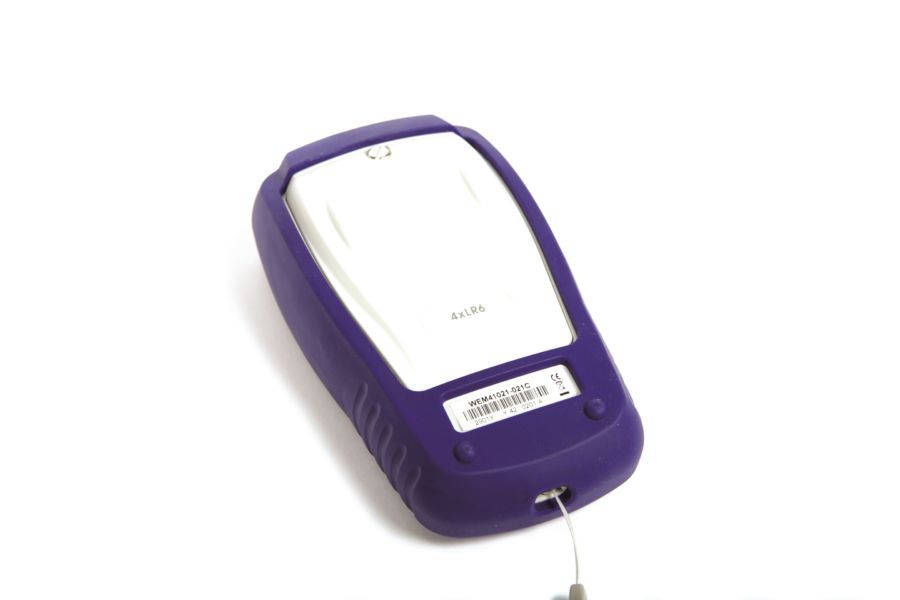

RTD 전용 교정기 모델명: TC 6622
► Handheld temperature calibrator for thermocouples
or resistive probes with memory
► TC 6621 temperature calibrator measures or generates
thermocouple temperatures (16 different types)
and voltage at an accuracy of 0.02%.
► TC 6622 temperature calibrator measures or generates
RTD temperatures (12 different types) and resistance
at an accuracy of 0.02%.
※ For industry and laboratory application only
제품 카달로그
제품문의
Easy-to-use and equipped with a large graphical display, TC temperature calibrators are the perfect field tools for easy and quick maintenance and commissioning of temperature transmitters and probes.
TC 6621 temperature calibrator measures or generates thermocouple temperatures (16 different types) and voltage at an accuracy of 0.02%.
TC 6622 temperature calibrator measures or generates RTD temperatures (12 different types) and resistance at an accuracy of 0.02%.
With a very low temperature coefficient (10 ppm/°C in thermocouples and 7ppm/°C in resistance), IP54 protection and robust design, TC calibrators are suitable for onsite use even in demanding environmental conditions. They are widely used in the energy field, engineering sector, metal industry and automotive field.
TC calibrators use a graphical interface making programming and reading easier, under graphical or test format. Due to memory feature (10,000 values) and extended functionalities (square root, steps, synthesizer, statistical functions…), TC are well adapted to different process job procedures and ensure full data traceability as well as advanced data exploitation. Use them together with DATACAL calibration software to display, manage data and issue your own customized calibration certificates.

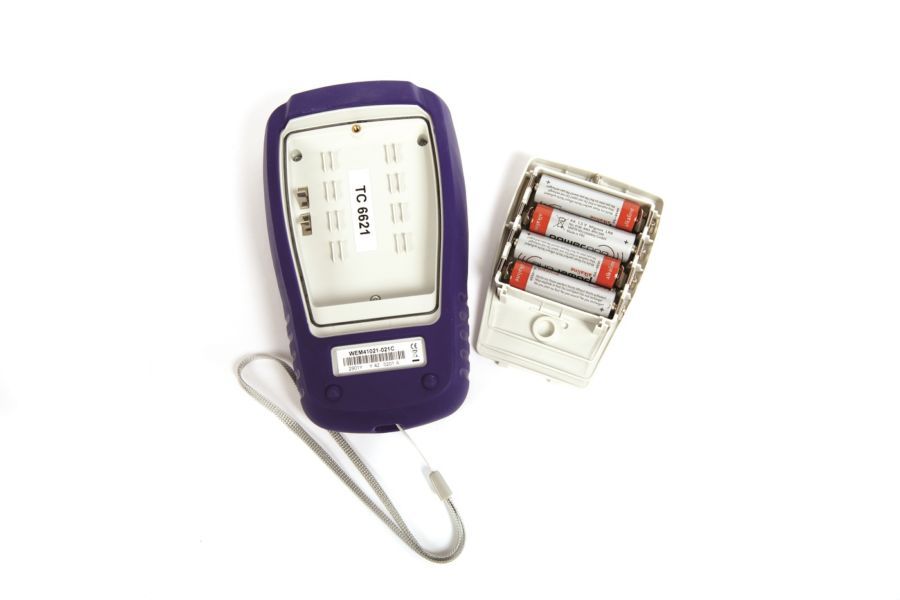

TC calibrators are delivered with 4 alkaline AA batteries in standard. The optional battery charger used a rechargeable battery.
Key features:
High accuracy: 0.02% reading with an adjustable resolution of 1 µV (TC 6621) and 1 mΩ (TC 6622)
Values displayed in °C, °F, mV and Ω
Low temperature coefficient: 10 ppm /°C for thermocouples and 7 ppm/°C for resistance
Measurements with HOLD function
Simulation of ramps, preprogrammed steps and synthetizer values
Correction of calibrated sensors
Display of minimum, maximum and average value
Backlight
10,000 values stored and displayed graphically
Specifications and performances of TC 6622 @23°C ±5°C
Resistance
| Function | Range | Resolution | Accuracy / 1 year | Notes |
| IN | 400 Ω | 1 mΩ | 0.012% RDG + 10 mΩ | Automatic detection: 2, 3 or 4 wires |
| 3600 Ω | 10 mΩ | 0.012% RDG + 100 mΩ | Automatic detection: 2, 3 or 4 wires | |
| OUT | 400 Ω (DC current) | 1 mΩ | 0.012% RDG + 30 mΩ | Acceptable current: 0.1 to 1 mA |
| 3550 Ω (DC current) | 10 mΩ | 0.012% RDG + 300 mΩ | Acceptable current: 0.1 to 1 mA |
Connection in resistance and RTDs through banana plugs or 4-pin round connector
Temperature coefficient: < 7 ppm/°C beyond reference domain
Rising time in simulation: < 1 ms
R internal: < 1 Ω
Noise VLF < 1 mV (@ F< 100 Hz)
Resistive probes: Measurement and simulation
| Sensor | Range (Input and Output) | Resolution | Accuracy / 1 year (Measurement) | Accuracy / 1 year (Simulation) |
| Pt50 (α = 3851) | -220°C to +850°C | 0.01°C | 0.012% RDG + 0.06°C | 0.012% RDG + 0.18°C |
| Pt100 (α = 3851) | -220°C to +850°C | 0.01°C | 0.012% RDG + 0.05°C | 0.012% RDG + 0.12°C |
| Pt100 (α = 3916) | -200°C to +510°C | 0.01°C | 0.012% RDG + 0.05°C | 0.012% RDG + 0.12°C |
| Pt100 (α = 3926) | -210°C to +850°C | 0.01°C | 0.012% RDG + 0.05°C | 0.012% RDG + 0.12°C |
| Pt200 (α = 3851) | -220°C to +120°C | 0.01°C | 0.012% RDG + 0.12°C | 0.012% RDG + 0.33°C |
| Pt500 (α = 3851) | -220°C to +1200°C | 0.01°C | 0.012% RDG + 0.07°C | 0.012% RDG + 0.18°C |
| Pt1000 (α = 3851) | -220°C to +760°C | 0.01°C | 0.012% RDG + 0.05°C | 0.012% RDG + 0.08°C |
| Ni100 (α = 618) | -60°C to 180°C | 0.01°C | 0.012% RDG + 0.03°C | 0.012% RDG + 0.08°C |
| Ni120 (α = 672) | -40°C to +205°C | 0.01°C | 0.012% RDG + 0.03°C | 0.012% RDG + 0.08°C |
| Ni1000 (α = 618) | -60°C to +180°C | 0.01°C | 0.012% RDG + 0.03°C | 0.012% RDG + 0.08°C |
| Cu10 (α = 427) | -50°C to 150°C | 0.01°C | 0.012% RDG + 0.18°C | 0.012% RDG + 0.1°C |
| Cu50 (α = 428) | -50°C to +150°C | 0.01°C | 0.012% RDG + 0.06°C | 0.012% RDG + 0.15°C |
Resistive probes measurements in 2, 3 or 4 wires: automatic recognition of number of connected wires, with indication on screen
Accuracies are given for 4-wire mounted probes
Take into account particular error of temperature sensor used and implementation conditions
Measuring current: 0.65 mA
Simulation current: 0.1 mA to 1mA
Minimal current pulse duration: < 1 ms
Temperature coefficient: < 10% of accuracy /°C
Further features
| Scaling in measurement and simulation modes | This function allows sensors to be corrected after a calibration. Scaling is performed using up to 10 segments, in order to fit with the real calibrated value. |
| Calibrated sensors | A database can be created to design curves for sensor s after calibration according to the corrections mentioned on a calibration report. |
| Data recording | Data are recorded either manually on event or automatically with programmable frequency. Data is stored with date and time and can be displayed as list or curve. |
| Statistical functions | Continuous display of average, minimum and maximum value of the signal under monitoring, as well as number of measurements. |
| Simple and cyclical ramp generation | Ramps can be generated by setting low and high dwell, rising and falling times, stabilization and delay times (1 to 3,600 s). Delay time enables a single user to launch the ramp and go to the control panel. |
| Steps simulation | This mode allows predefined values to be sent with programmable amplitude and frequency. |
| Synthesizer | This mode allows predefined values to be sent with programmable frequency. |
General specifications
| Size | 157 x 85 x 45 mm |
| Weight | 306 g |
| Display | 160 x 160 pixel liquid crystal graphical display with backlite Display of result as table of values or trend curve |
| Power supply | 4 AA batteries 1.5 V or rechargeable Ni-Mh batteries with internal charger in option |
| Communication ports | USB |
| Storage capacity | 10,000 data with date and time into one or several acquisition bursts |
Environmental specifications
| Reference range | 23°C ±5°C (RH: 45 to 75% w/o condensing) |
| Operating reference range | -10 to 50°C (RH: 20 to 80% w/o condensing) |
| Limit operating range | -15°C to +55°C (RH: 10 to 80% w/o condensing) (70% at 55°C) |
| Storage temperature limits | -30°C to +60°C |
| Maximum height | 0 to 2,200 m |
| IP protection | IP54 according to EN60529 |
Safety specifications
| Protections |
|
| Class | In accordance with EN 61010-1 Category II, pollution 2 |
| Rated voltage | 60 V |
| Chocks and vibrations | EN 61010-1 |
| EMC conformity | Immunity:
EN 61000-4-4
|
