열전대 전용 교정기 모델명: TC 6621

► Handheld temperature calibrator for thermocouples

or resistive probes with memory
► TC 6621 temperature calibrator measures or generates

thermocouple temperatures (16 different types)

and voltage at an accuracy of 0.02%.

► TC 6622 temperature calibrator measures or generates

RTD temperatures (12 different types) and resistance

at an accuracy of 0.02%.

※ For industry and laboratory application only

제품 카달로그

제품문의

제품특징

상세사양

Easy-to-use and equipped with a large graphical display, TC temperature calibrators are the perfect field tools for easy and quick maintenance and commissioning of temperature transmitters and probes.

TC 6621 temperature calibrator measures or generates thermocouple temperatures (16 different types) and voltage at an accuracy of 0.02%.

TC 6622 temperature calibrator measures or generates RTD temperatures (12 different types) and resistance at an accuracy of 0.02%.

With a very low temperature coefficient (10 ppm/°C in thermocouples and 7ppm/°C in resistance), IP54 protection and robust design, TC calibrators are suitable for onsite use even in demanding environmental conditions. They are widely used in the energy field, engineering sector, metal industry and automotive field.

TC calibrators use a graphical interface making programming and reading easier, under graphical or test format. Due to memory feature (10,000 values) and extended functionalities (square root, steps, synthesizer, statistical functions…), TC are well adapted to different process job procedures and ensure full data traceability as well as advanced data exploitation. Use them together with DATACAL calibration software to display, manage data and issue your own customized calibration certificates.

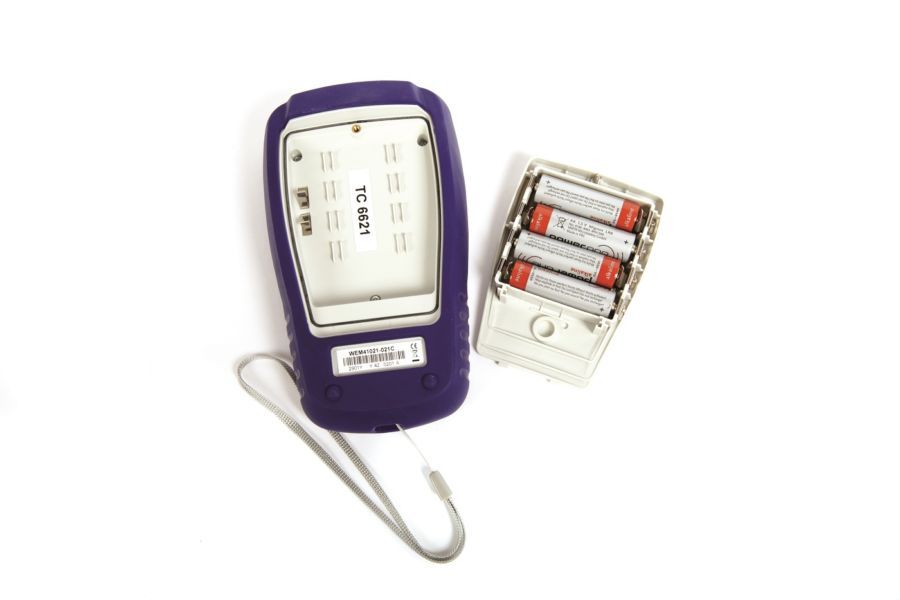

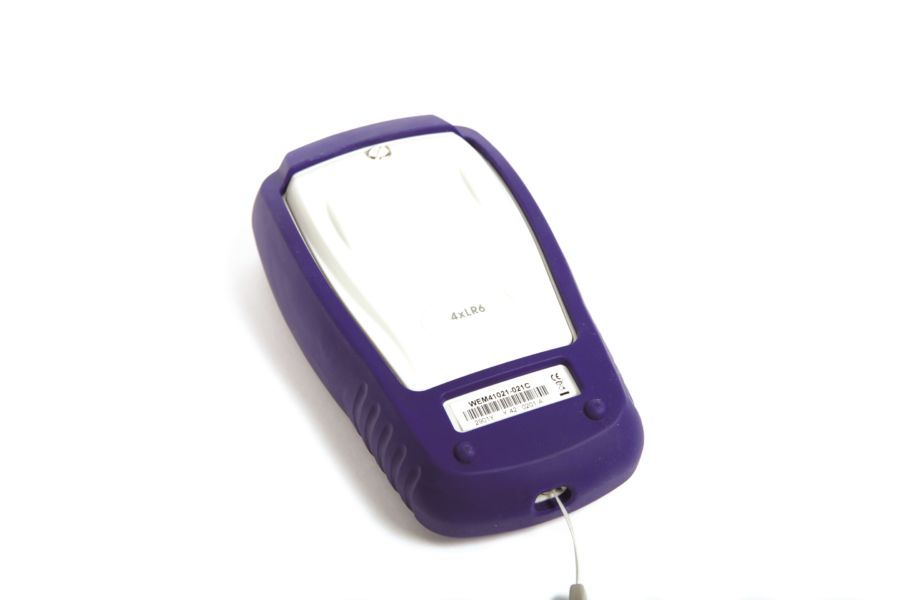

TC calibrators are delivered with 4 alkaline AA batteries in standard. The optional battery charger used a rechargeable battery.

Key features:

High accuracy: 0.02% reading with an adjustable resolution of 1 µV (TC 6621) and 1 mΩ (TC 6622)

Values displayed in °C, °F, mV and Ω

Low temperature coefficient: 10 ppm /°C for thermocouples and 7 ppm/°C for resistance

Measurements with HOLD function

Simulation of ramps, preprogrammed steps and synthetizer values

Correction of calibrated sensors

Display of minimum, maximum and average value

Backlight

10,000 values stored and displayed graphically

Specifications and performances of TC 6621 @23°C ±5°C

DC voltage

Function	Range	Res.	Accuracy / 1 year	Measuring range
IN	100 mV	1 µV	0.020% RDG + 3 µV	-10 mV / 100 mV
OUT	80 mV	1 µV	0.020% RDG + 3 µV	-9.5 mV / 80 mV

Temperature coefficient < 15 ppm/°C beyond reference domain

Thermocouples: Measurement and simulation

Type	Input range	Resolution	Accuracy / 1 year (Measurement)	Output range	Resolution	Accuracy / 1 year (Simulation)
K	-250 to -200°C -200 to -120°C -120 to 0°C 0 to +1372°C	0.2°C 0.1°C 0.05°C 0.05°C	0.90°C 0.3°C 0.02% RDG + 0.12°C 0.02% RDG + 0.11°C	-240 to -50°C -50 to +120°C +120 to +1372°C	0.2°C 0.1°C 0.05°C	0.8°C 0.3°C 0.02% RDG + 0.11°C
T	-250 to -200°C -200 to -50°C -50 to +400°C	0.2°C 0.05°C 0.05°C	0.8°C 0.25°C 0.02% RDG + 0.09°C	-240 to -100°C -100 to -40°C -40 to +400°C	0.2°C 0.05°C 0.05°C	0.5°C 0.25°C 0.02% RDG + 0.10°C
J	-210 to -200°C -200 to -120°C -120 to +60°C +60 to +1200°C	0.05°C 0.05°C 0.05°C 0.05°C	0.3°C 0.25°C 0.02% RDG + 0.11°C 0.02% RDG + 0.09°C	-210 to +50°C +50 to +500°C +500 to +1200°C	0.05°C 0.05°C 0.05°C	0.35°C 0.02% RDG + 0.11°C 0.02% RDG + 0.09°C
E	-250 to -200°C -200 to -100°C -100 to +450°C +450 to 1000°C	0.1°C 0.05°C 0.05°C 0.05°C	0.55°C 0.2°C 0.02% RDG + 0.07°C 0.02% RDG + 0.05°C	-240 to -100°C -100 to +40°C +40 to +1000°C	0.1°C 0.1°C 0.05°C	0.55°C 0.2°C 0.02% RDG + 0.06°C
R	-50 to +150°C +150 to +550°C +550 to 1768°C	0.5°C 0.2°C 0.1°C	0.95°C 0.4°C 0.02% RDG + 0.3°C	-50 to +350°C +350 to +900°C 900°C to +1768°C	0.5°C 0.2°C 0.1°C	0.95°C 0.4°C 0.02% RDG + 0.3°C
S	-50 to +150°C +150 to +550°C +550 to +1768°C	0.5°C 0.2°C 0.1°C	0.85°C 0.02% RDG + 0.4°C 0.02% RDG + 0.3°C	-50 to +350°C +350 to 900°C +900 to +1768°C	0.5°C 0.2°C 0.1°C	0.9°C 0.02% RDG + 0.4°C 0.02% RDG + 0.3°C
B	+400 to +900°C +900 to +1820°C	0.2°C 0.1°C	0.95°C 0.5°C	+400 to +850°C +850 to +1820°C	0.2°C 0.1°C	0.95°C 0.5°C
U	-200 to -100°C -100 to +600°C	0.05°C 0.05°C	0.35°C 0.2°C	-200 to -70°C -70 to +600°C	0.05°C 0.05°C	0.35°C 0.2°C
L	-200 to -100°C -100°C to +900°C	0.05°C 0.05°C	0.3°C 0.2°C	-200 to -70°C -70 to +900°C	0.05°C 0.05°C	0.3°C 0.25°C
C	-20 to +900°C +900 to 2310°C	0.1°C 0.1°C	0.3°C 0.02% RDG + 0.15°C	-20 to +900°C +900 to 2310°C	0.1°C 0.1°C	0.35°C 0.02% RDG + 0.15°C
N	-240 to -190°C -190 to -110°C -110 to +0°C +0 to +1300°C	0.2°C 0.1°C 0.05°C 0.05°C	0.6°C 0.25°C 0.15°C 0.02% RDG + 0.07°C	-240 to +10°C +10 to +250°C +250 to +1300°C	0.2°C 0.1°C 0.05°C	0.9°C 0.2°C 0.02% RDG + 0.09°C
Platine	-100 to +1400°C	0.05°C	0.3°C	-100 to +1400°C	0.05°C	0.35°C
Mo	+0 to +1375°C	0.05°C	0.02% RDG + 0.1°C	+0 to +1375°C	0.05°C	0.25°C
NiMo/NiCo	-50 to +1410°C	0.05°C	0.02% RDG + 0.35°C	-50 to +1410°C	0.05°C	0.02% RDG + 0.35°C

Thermocouples G, D: For specifications, refer to the instruction manual (Available on request)
Accuracy is given for reference @ 0°C.
When using the internal reference junction (except couple B) add an additional uncertainty of 0.3 °C at 0 °C.
It is possible (thermocouple B excepted) to choose by programming the cold junction localization: External at 0°C, internal (temperature compensation of instrument’s terminals) or manually entered.
Temperature coefficient: <10% of accuracy /°C
