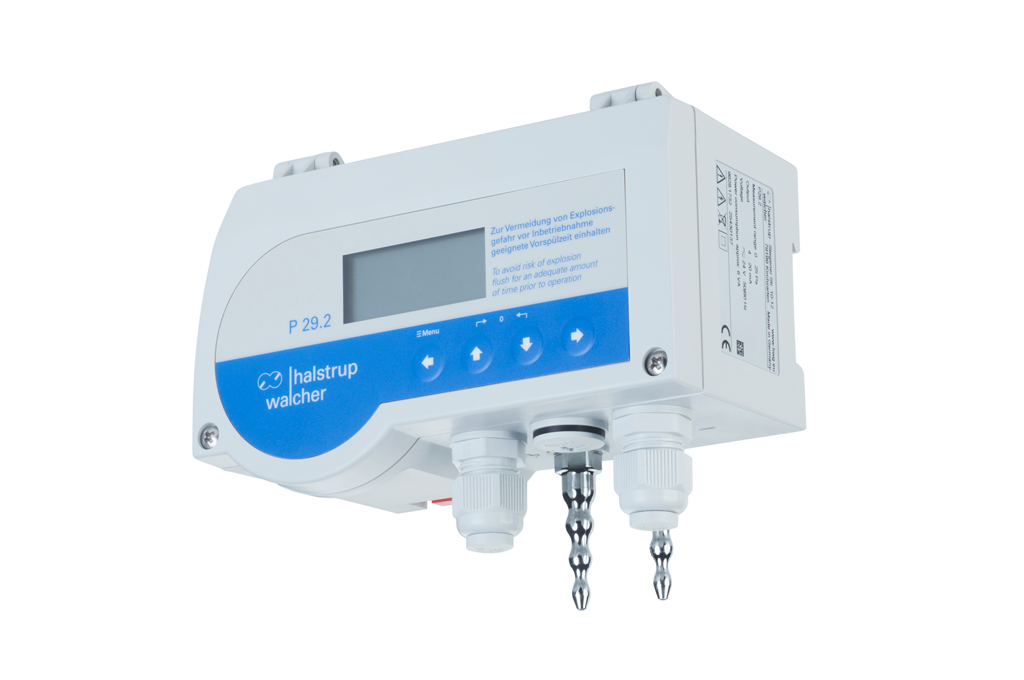

차압 트랜스미터 모델명: P29.2

► High-precision differential pressure transmitter for natural gas

► Precisely matched measurement ranges starting at 250 Pa

► No zero-point drift thanks to automatic zero-point calibration

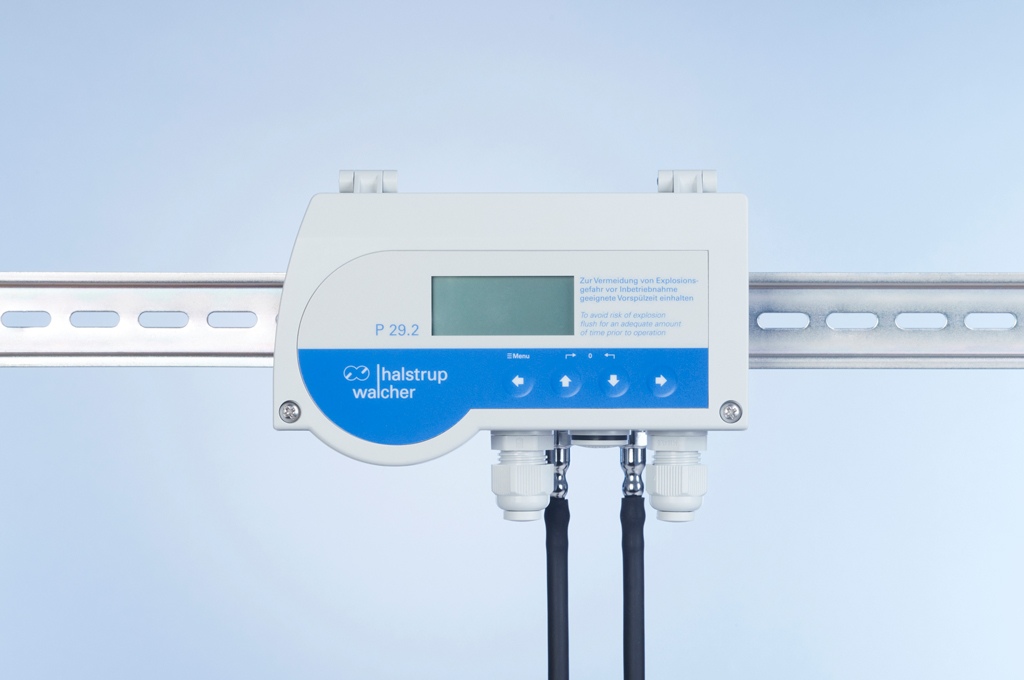

► Easy commissioning and flexible mounting (DIN rail and wall mounting)

► Multiple digital and analog outputs as standard

► Extensive configuration options via parameterization software using the internal USB-C interface



※ For industry and laboratory application only

제품 카달로그
제품문의
제품특징

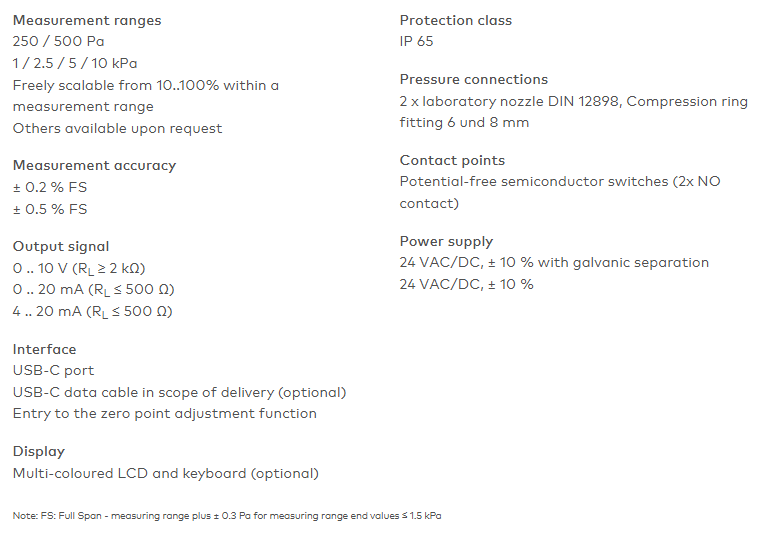

상세사양

The P 29.2 differential pressure transmitter is particularly suitable for measuring the volume flow, mass flow, and flow velocity of natural gases such as butane, methane, etc., in industrial furnaces or combustion systems. The device does not create an ATEX zone, as its design and technical features ensure it poses no ignition hazard. The measurement ranges are scalable from 10% to 100%. A selectable time constant allows for optimal adaptation of the transmitter to the pressure conditions, thereby ensuring a stable output signal. The pressure transmitter is CE-certified as standard. NRTL certification in accordance with UL/CSA 61010-1 is in preparation.
