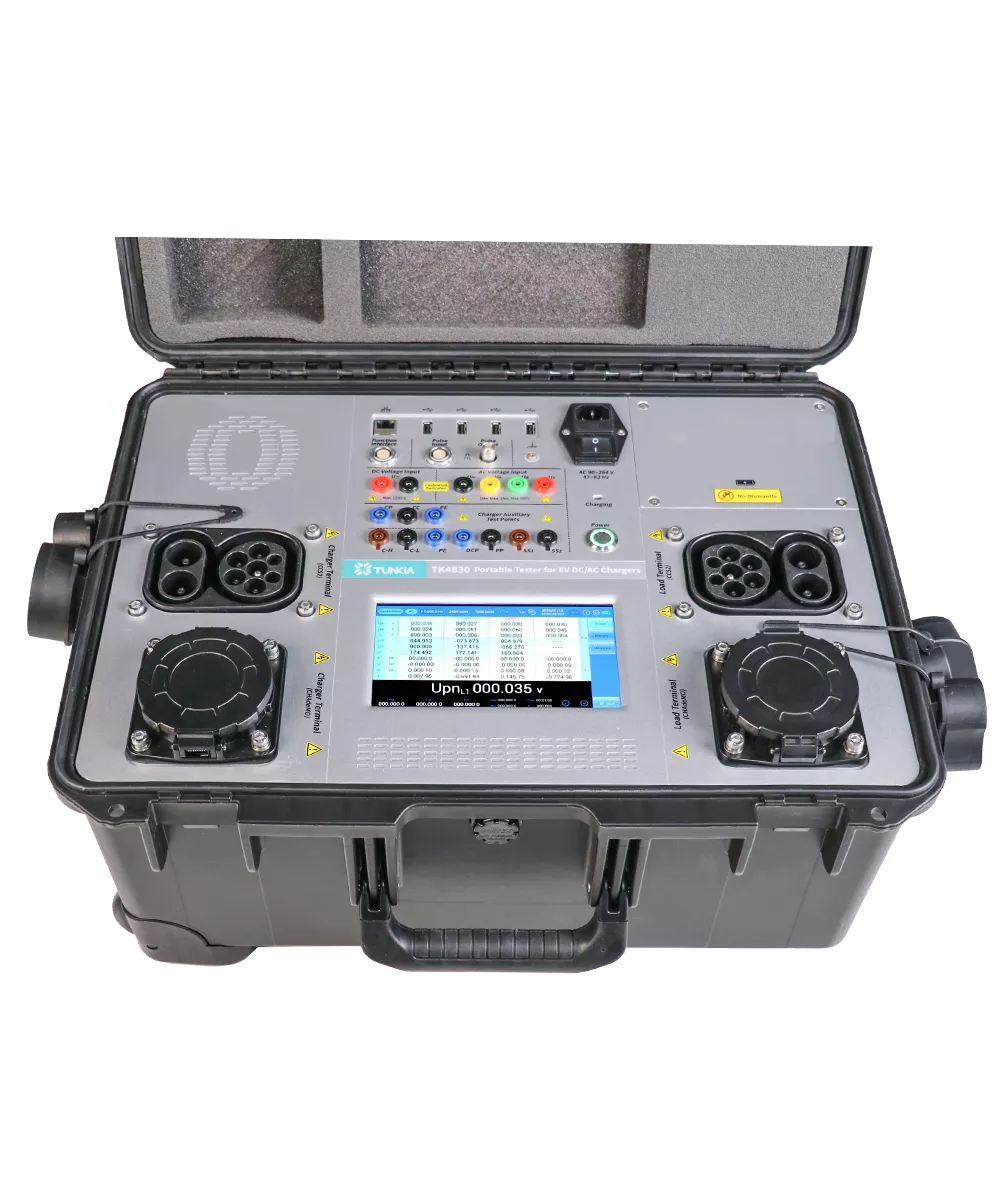

TE1100-AC/DC-EU is an integrated AC/DC EV charger tester designed for the verification of EV chargers.

It provides both AC and DC energy measurement with an accuracy of Class 0.05 and Class 0.1, enabling operating error testing of AC and DC EV chargers.

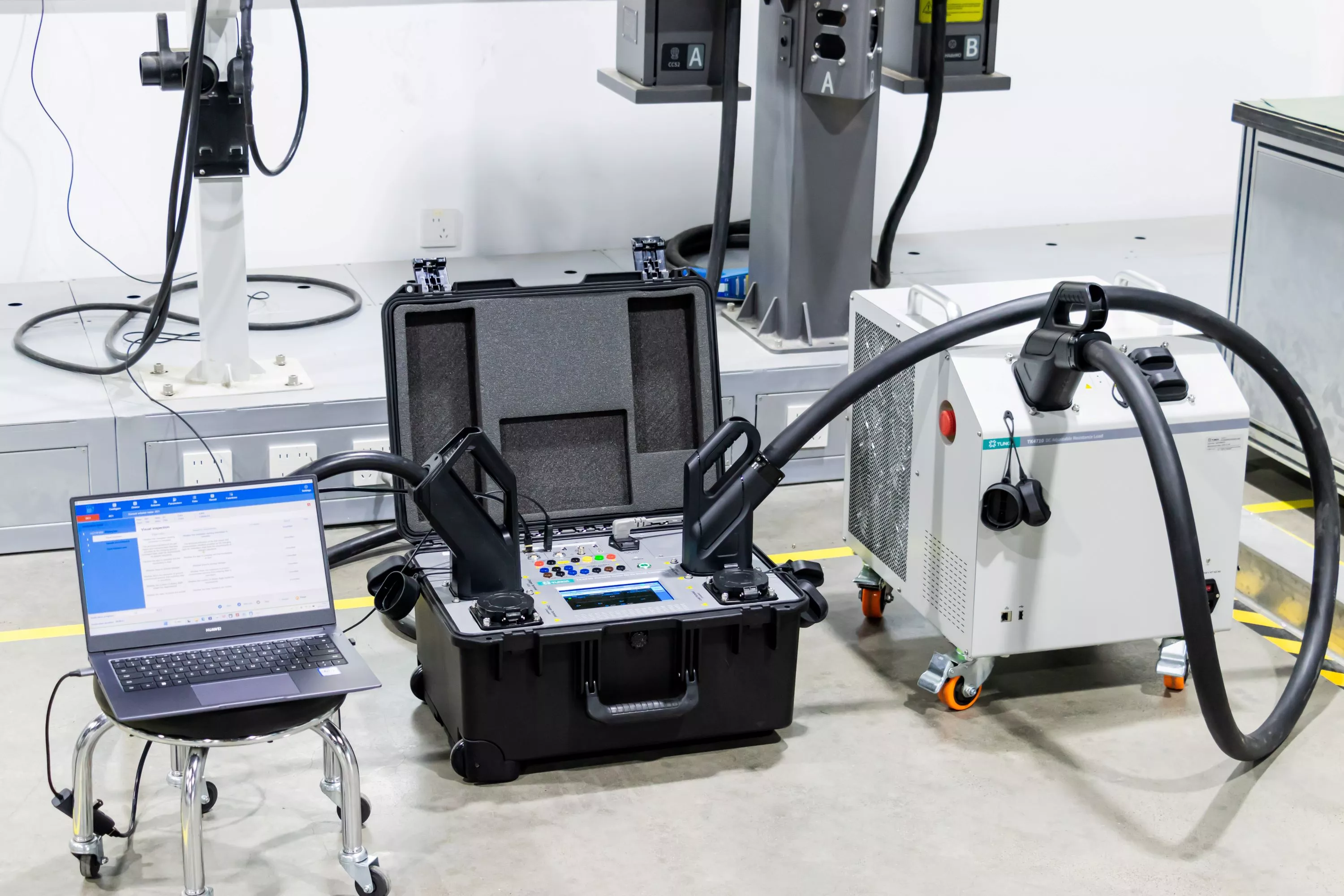

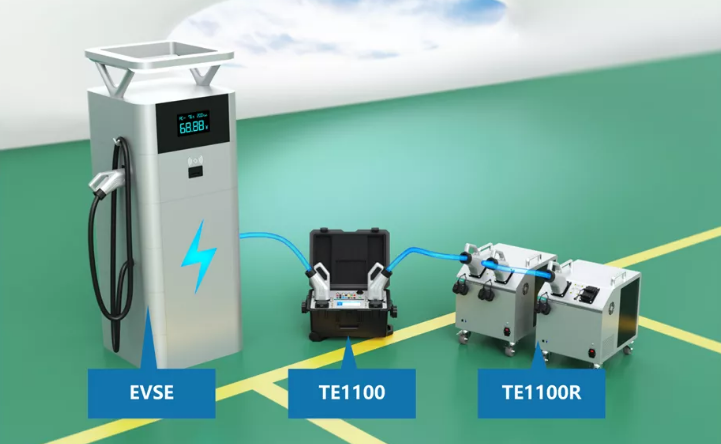

The device supports European-standard CCS2 DC charging interfaces and Type 2 AC charging interfaces. Testing can be performed using an electric vehicle as the load or with a resistive load.

By combining wide dynamic range measurement technology with millisecond-level energy measurement refresh, the system achieves accurate accumulated energy measurement throughout the entire charging process.

Compared with conventional steady-state verification at preset test points, it provides a more realistic evaluation of EV charger performance.
